Milestone 9 - OpenStack Tutorials

Services Commands:

Display services:

microstack.openstack catalog list

Display users:

microstack.openstack user list

Display images:

microstack.openstack image list

Display networks:

microstack.openstack network list

Display hypervisors:

microstack.openstack hypervisor list

Themes:

Users:

Access users:

Change user password:

Project drop down:

The Project menu on the left is grouped into three sections:

API Access provides information about API endpoints of OpenStack services.
Compute provides access to project compute resources, such as instances.
Network provides access to project network resources, such as virtual networks.

List images for a project:

The Admin menu on the left is grouped into five sections:

Overview displays usage metrics across all projects.
Compute provides access to global compute resources, such as hypervisors.
Network provides access to global network resources, such as RBAC policies.
System provides access to various system information.
Optimization currently not used

The Identity menu on the left is grouped into six sections:

Domains provides acces to domains.
Projects provides access to project accounts.
Users provides access to user accounts.
Groups provides access to user groups.
Roles provides access to user roles.
Application Credentials provides access to application credentials.

Templates:

Create Image:

microstack.openstack image create --disk-format qcow2 --min-disk 8 --min-ram 512 --file ~/Downloads/focal-server-cloudimg-amd64-disk-kvm.img --private paul-focal

List images:

microstack.openstack image list

Manage through dashboard:

Example upload:

Image Name - Type ubuntu-focal
File - Click Browse and find the focal-server-cloudimg-amd64-disk-kvm.img file in your Downloads directory
Format - Select QCOW2 - QEMU Emulator
Minimum Disk (GB) - Type 8
Minimum RAM (MB) - Type 512
Visibility - Choose Private

Manage flavors:

Create a flavor:

microstack.openstack flavor create --ram 1024 --disk 10 --vcpus 1 paul-flavor

List flavors:

microstack.openstack flavor list

Manage flavors in dashboard:

To create the flavor, fill in the form as follows:

Name - Type paul-flavor
VCPUS - Type 1
RAM (MB) - Type 1024
Root Disk (GB) - Type 10

Identities:

Manage Domains:

Create domain:

microstack.openstack domain create --description "paul_domain" pauldomain

List domain:

microstack.openstack domain list

Create domain user:

microstack.openstack user create --domain pauldomain --password <password> admin
microstack.openstack role add --domain pauldomain --user-domain pauldomain --user admin admin

Oliver added the following code to enable domains:

add the following to "/var/snap/microstack/common/etc/horizon/local_settings.d/_05_snap_tweaks.py" to enable domains:

# Setup multidomain support
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = "Default"

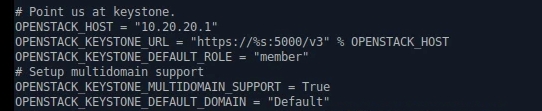

Additions seen added to _05_snap_tweaks.py:

Then ran:

sudo snap restart microstack.horizon-uwsgi

To login with domain user:

Domains:

Manage Roles:

Create role:

microstack.openstack role create _paulmember_

List roles:

microstack.openstack role list

Project management:

Create project:

microstack.openstack project create --domain pauldomain paulproject

List project in domain:

microstack.openstack project list --domain pauldomain

User and group management:

Create new user:

microstack.openstack user create --domain pauldomain --password <password> admin2

Create a new group:

microstack.openstack group create --domain pauldomain paulgroup

List groups:

microstack.openstack group list --domain pauldomain

Membership and assignment management:

Add user to group:

microstack.openstack group add user --group-domain pauldomain --user-domain pauldomain paulgroup admin2

Assign group to project:

microstack.openstack role add --project paulproject --project-domain pauldomain --group paulgroup --group-domain pauldomain member

Multi-tenancy:

Setup:

sudo apt install python3-pip python3.10-venv -y


python3 -m venv venv
source venv/bin/activate
pip install python-openstackclient

source ~/Downloads/pauldomain_admin2.sh

Keypair:

openstack --insecure keypair create --private-key ./mykeypair.pem --type ssh mykeypair

Networking:

Network:

Create network:

microstack.openstack network create paulnetwork

List networks:

microstack.openstack network list

Subnet:

Create subnet:

microstack.openstack subnet create --network paulnetwork --subnet-range 10.5.0.0/24 --allocation-pool start=10.5.0.75,end=10.5.0.100 --dns-nameserver 1.1.1.1 paulsubnet

List subnets:

microstack.openstack subnet list

Routers:

Create:

microstack.openstack router create paulrouter

List:

microstack.openstack router list

Set external network:

microstack.openstack router set --external-gateway external-network paulrouter

Add subnet:

microstack.openstack router add subnet paulrouter paulsubnet

Floating IPs:

Create:

microstack.openstack floating ip create external

list:

microstack.openstack floating ip list

Security Groups:

Create:

microstack.openstack security group create paulsecuritygroup

list:

microstack.openstack security group list

All 22 to my security group:

microstack.openstack security group rule create --remote-ip 0.0.0.0/0 --dst-port 22:22 --protocol tcp --ingress paulsecuritygroup

List rules:

microstack.openstack security group rule list paulsecuritygroup

Instances:

Launch instance:

launch:

microstack.openstack --insecure server create --flavor paul-flavor --image cirros --network paulnetwork --key-name mykeypair --min 2 --max 2 paulinstance

Server list:

microstack.openstack server list

Floating IP to instance:

IP=$(openstack --insecure floating ip list | tail -n 2 | head -n 1 | awk '{print $4}')
microstack.openstack --insecure server add floating ip paulinstance $IP

Attach security to instance:

microstack.openstack server add security group paulinstance paulsecuritygroup

Attach security group:

chmod 0400 ~/Downloads/mykeypair.pem

IP=$(openstack floating ip list | tail -n 2 | head -n 1 | awk '{print $4}')
ssh -i ~/Downloads/mykeypair.pem -o StrictHostKeyChecking=no cirros@$IP

Delete Instance:

microstack.openstack server delete paulinstance
