# Assessment Prep

## Network

<figure><img src="https://3273291826-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2AKOZN7QAJ7f0bP5MzKF%2Fuploads%2FwTr7kDhvuRDZtRyi6H8t%2Fimage.png?alt=media&#x26;token=2eda57db-806c-48cf-8d81-a2c2aca01bf0" alt=""><figcaption></figcaption></figure>

## Edge01-Paul (10.0.17.127/24, 172.16.50.2/29, 172.16.150.2/24)

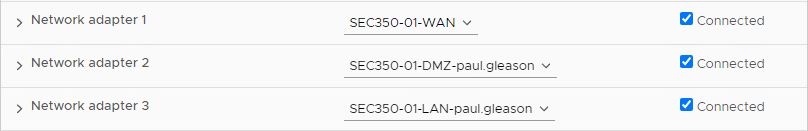

### Wiring

<figure><img src="https://3273291826-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2AKOZN7QAJ7f0bP5MzKF%2Fuploads%2FmOLfOI77zmHH0OC4toi2%2Fimage.png?alt=media&#x26;token=464ee014-8411-4fad-a437-385b8d849a59" alt=""><figcaption></figcaption></figure>

### Main Setup

```bash
set service ssh listen-address '0.0.0.0'
set interfaces ethernet eth0 address '10.0.17.127/24'
```

### Pull down config on Traveler

{% code overflow="wrap" %}

```powershell
wget -O vyos_config "https://raw.githubusercontent.com/ChampPG/Tech-Journals/main/SEC-350/Assessment%20Prep/vyos_config"
scp vyos_config vyos@10.0.17.127:
```

{% endcode %}

### Load Config

```bash
configure
load vyos_config
commit
save
```

### SSH, Hostname, Route, and Server name

```bash
set system host-name 'edge01-paul'
set system name-server '10.0.17.2'
set protocols static route 0.0.0.0/0 next-hop 10.0.17.2
set service ssh listen-address '0.0.0.0'

set system login user vyos authentication plaintext-password <Password>

# Leave out this line till the end...
del service ssh listen-address '0.0.0.0'
set service ssh listen-address '172.16.150.2'
```

### Set Interfaces

```bash
set interfaces ethernet eth0 address '10.0.17.127/24'
set interfaces ethernet eth0 description 'SEC350-WAN'

set interfaces ethernet eth1 address '172.16.50.2/29'
set interfaces ethernet eth1 description 'PAUL-DMZ'

set interfaces ethernet eth2 address '172.16.150.2/24'
set interfaces ethernet eth2 description 'PAUL-LAN'
```

```bash
set zone-policy zone DMZ from LAN firewall name 'LAN-to-DMZ'
set zone-policy zone DMZ from WAN firewall name 'WAN-to-DMZ'
set zone-policy zone DMZ interface 'eth1'

set zone-policy zone LAN from DMZ firewall name 'DMZ-to-LAN'
set zone-policy zone LAN from WAN firewall name 'WAN-to-LAN'
set zone-policy zone LAN interface 'eth2'

set zone-policy zone WAN from DMZ firewall name 'DMZ-to-WAN'
set zone-policy zone WAN from LAN firewall name 'LAN-to-WAN'
set zone-policy zone WAN interface 'eth0'
```

### DNS

```bash
set service dns forwarding allow-from '172.16.150.0/24'
set service dns forwarding listen-address '172.16.50.2'
set service dns forwarding listen-address '172.16.150.2'
set service dns forwarding system
set service dns forwarding allow-from '172.16.50.0/29'
```

### RIP

```bash
set protocols rip interface eth2
set protocols rip network '172.16.50.0/29'
```

### NAT Rules

#### NAT Source from DMZ to WAN

```bash
set nat source rule 10 description 'NAT FROM DMZ to WAN'
set nat source rule 10 outbound-interface 'eth0'
set nat source rule 10 source address '172.16.50.0/29'
set nat source rule 10 translation address 'masquerade'
```

#### NAT from MGMT to WAN

```bash
set nat source rule 30 description 'NAT FROM MGMT to WAN'
set nat source rule 30 outbound-interface 'eth0'
set nat source rule 30 source address '172.16.200.0/28'
set nat source rule 30 translation address 'masquerade'
```

#### NAT Source from LAN to WAN

```bash
set nat source rule 20 description 'NAT FROM LAN to WAN'
set nat source rule 20 outbound-interface 'eth0'
set nat source rule 20 source address '172.16.150.0/24'
set nat source rule 20 translation address 'masquerade'
```

#### NAT Destination from WAN HTTP to NGINX

```bash
set nat destination rule 10 description 'WAN HTTP to NGINX'
set nat destination rule 10 destination port '80'
set nat destination rule 10 inbound-interface 'eth0'
set nat destination rule 10 protocol 'tcp'
set nat destination rule 10 translation address '172.16.50.3'
set nat destination rule 10 translation port '80'
```

#### NAT Destination from WAN to Jump

```bash
set nat destination rule 20 description 'WAN to JUMP'
set nat destination rule 20 destination port '22'
set nat destination rule 20 inbound-interface 'eth0'
set nat destination rule 20 protocol 'tcp'
set nat destination rule 20 translation address '172.16.50.4'
set nat destination rule 20 translation port '22'
```

### Firewall Rules

#### DMZ-to-LAN

```bash
set firewall name DMZ-to-LAN default-action 'drop'
set firewall name DMZ-to-LAN enable-default-log
ash
set firewall name DMZ-to-LAN rule 1 action 'accept'
set firewall name DMZ-to-LAN rule 1 state established 'enable'

set firewall name DMZ-to-LAN rule 10 action 'accept'
set firewall name DMZ-to-LAN rule 10 description 'wazuh agent communications with wazuh server'
set firewall name DMZ-to-LAN rule 10 destination address '172.16.200.10'
set firewall name DMZ-to-LAN rule 10 destination port '1514-1515'
set firewall name DMZ-to-LAN rule 10 protocol 'tcp'
```

#### DMZ-to-WAN

```bash
set firewall name DMZ-to-WAN default-action 'drop'
set firewall name DMZ-to-WAN enable-default-log
set firewall name DMZ-to-WAN rule 1 action 'accept'
set firewall name DMZ-to-WAN rule 1 state established 'enable'

# Only use line below if NGINX needs network
set firewall name DMZ-to-WAN rule 999 action 'accept'
set firewall name DMZ-to-WAN rule 999 source address '172.16.50.3'
```

#### LAN-to-DMZ

```bash
set firewall name LAN-to-DMZ default-action 'drop'
set firewall name LAN-to-DMZ enable-default-log

set firewall name LAN-to-DMZ rule 1 action 'accept'
set firewall name LAN-to-DMZ rule 1 state established 'enable'

set firewall name LAN-to-DMZ rule 10 action 'accept'
set firewall name LAN-to-DMZ rule 10 description 'Allow HTTP from LAN to NGINX'
set firewall name LAN-to-DMZ rule 10 destination address '172.16.50.3'
set firewall name LAN-to-DMZ rule 10 destination port '80'
set firewall name LAN-to-DMZ rule 10 protocol 'tcp'

set firewall name LAN-to-DMZ rule 20 action 'accept'
set firewall name LAN-to-DMZ rule 20 description 'ssh from mgmt01 to DMZ'
set firewall name LAN-to-DMZ rule 20 destination address '172.16.50.0/29'
set firewall name LAN-to-DMZ rule 20 destination port '22'
set firewall name LAN-to-DMZ rule 20 protocol 'tcp'
set firewall name LAN-to-DMZ rule 20 source address '172.16.150.10'
```

#### LAN-to-WAN

```bash
set firewall name LAN-to-WAN default-action 'drop'
set firewall name LAN-to-WAN enable-default-log

set firewall name LAN-to-WAN rule 1 action 'accept'
```

#### WAN-to-LAN

```bash
set firewall name WAN-to-LAN default-action 'drop'
set firewall name WAN-to-LAN enable-default-log

set firewall name WAN-to-LAN rule 1 action 'accept'
set firewall name WAN-to-LAN rule 1 state established 'enable'
```

#### WAN-to-DMZ

```bash
set firewall name WAN-to-DMZ default-action 'drop'
set firewall name WAN-to-DMZ enable-default-log

set firewall name WAN-to-DMZ rule 1 action 'accept'
set firewall name WAN-to-DMZ rule 1 state established 'enable'

set firewall name WAN-to-DMZ rule 10 action 'accept'
set firewall name WAN-to-DMZ rule 10 description 'Allow HTTP from WAN to DMZ'
set firewall name WAN-to-DMZ rule 10 destination address '172.16.50.3'
set firewall name WAN-to-DMZ rule 10 destination port '80'
set firewall name WAN-to-DMZ rule 10 protocol 'tcp'

set firewall name WAN-to-DMZ rule 20 action 'accept'
set firewall name WAN-to-DMZ rule 20 description 'Allow SSH from WAN to DMZ'
set firewall name WAN-to-DMZ rule 20 destination address '172.16.50.4'
set firewall name WAN-to-DMZ rule 20 destination port '22'
set firewall name WAN-to-DMZ rule 20 protocol 'tcp'
```

## Traveler (10.0.17.27/24)

User Config/Hostname:

```powershell
$Password = Read-Host -AsSecureString
New-LocalUser "paul" -Password $Password -FullName "paul" -Description "Hello me"
Add-LocalGroupMember -Group "Administrators" -Member "paul"

Rename-Computer -NewName "traveler-paul" -Restart
```

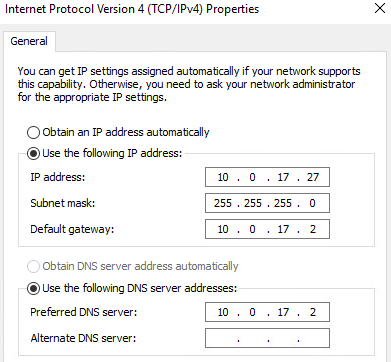

Network Config:

```powershell
#SET Network

# look at what the ifIndex is
Get-Netadapter
New-NetIPAddress -InterfaceIndex <IfIndex> -IPAddress 10.0.17.27 -PrefixLength 24 -DefaultGateway 10.0.17.2
```

<figure><img src="https://3273291826-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2AKOZN7QAJ7f0bP5MzKF%2Fuploads%2FfniV1IzgBo3B8iMUuPAz%2Fimage.png?alt=media&#x26;token=d4252933-fcc7-424e-9eb7-c1011a83a4ea" alt=""><figcaption></figcaption></figure>

Run as Admin:

```powershell
# Install OpenSSH , does not install if "ssh" folder exists
if (!(Test-Path "C:\ProgramData\ssh\ssh_host_rsa_key")) {
    Add-WindowsCapability -Online -Name OpenSSH.Server~~~~0.0.1.0
}

# Start now and on startup
Start-Service sshd
Set-Service -Name sshd -StartupType Automatic
```

Run as User:

<pre class="language-powershell"><code class="lang-powershell"><strong># Generate Keys
</strong>ssh-keygen.exe -f .\ssh-keys
</code></pre>

#### MGMT pass keys to jump

```bash
#!/bin/bash
WINDOWSUSER="paul"
WINDOWSIP="10.0.17.27"
JUMPUSER="paul-jump"
JUMPIP="172.16.50.4"

sftp $WINDOWSUSER@$WINDOWSIP:ssh-keys.pub
scp ssh-keys.pub paul@$JUMPIP:travel.pub

ssh paul@$JUMPIP <<END
  sudo -i
  cat /home/paul/travel.pub >> /home/$JUMPUSER/.ssh/authorized_keys
END
```

## NGINX (172.16.50.3/29)

### User and Hostname Setup:

```bash
sudo adduser paul
sudo usermod -aG sudo paul
sudo hostnamectl set-hostname nginx-paul

sudo reboot
sudo deluser champuser
```

### Network Setup:

<pre class="language-bash"><code class="lang-bash">#Set Networking

# If nmtui
nmtui
<strong>#Address = 172.16.50.3
</strong>#Gateway = 172.16.50.2
<strong>#DNS Server = 172.16.50.2
</strong>
# If Netplan
/bin/cat &#x3C;&#x3C; EOM >/etc/netplan/00-installer-config.yaml
  network:
    ethernets:
      &#x3C;adapter>:
        addresses: [172.16.50.3/29]
        gateway4: 172.16.50.2
        namerservers:
          addresses: [172.16.50.2]
    version: 2
EOM

sudo netplan try
</code></pre>

### Nginx Service Setup:

```bash
sudo apt update
sudo apt install nginx -y

cd /var/www/html
touch index.html

/bin/cat << EOM >index.html
  Paul Gleason nginx
EOM

sudo systemctl enable nginx
sudo systemctl start nginx
sudo systemctl status nginx
```

### Wazuh Agent Setup:

MGMT

```
scp wazuh-agent-4.3.10.deb paul@172.16.50.3:
```

On NGINX

```bash
sudo WAZUH_MAsudo WAZUH_MANAGER='172.16.200.10' WAZUH_AGENT_GROUP='linux' dpkg -i ./wazuh-agent-4.3.10.deb
sudo systemctl daemon-reload
sudo systemctl enable wazuh-agent
sudo systemctl start wazuh-agent
```

## DHCP (172.16.150.5/24)

### User and Hostname Setup:

```bash
sudo adduser paul
sudo usermod -aG sudo paul
sudo hostnamectl set-hostname dhcp-paul

sudo reboot
sudo deluser champuser
```

### Network Setup:

<pre class="language-bash"><code class="lang-bash">#Set Networking

# If nmtui
nmtui
<strong>#Address = 172.16.150.5
</strong>#Gateway = 172.16.150.2
<strong>#DNS Server = 172.16.150.2
</strong>
# If Netplan
/bin/cat &#x3C;&#x3C; EOM >/etc/netplan/00-installer-config.yaml
  network:
    ethernets:
      &#x3C;adapter>:
        addresses: [172.16.150.5/24]
        gateway4: 172.16.150.2
        namerservers:
          addresses: [172.16.150.2]
    version: 2
EOM

sudo netplan try
</code></pre>

### DHCP Setup:

```bash
sudo apt update
sudo apt install isc-dhcp-server -y

cp /etc/dhcp/dhcpd.conf /etc/dhcp/dhcpd.conf.backup

FILE="/etc/dhcp/dhcpd.conf"
/bin/cat << EOM >$FILE
subnet 172.16.150.0 netmask 255.255.255.0 {
    option routers 172.16.150.2;
    option subnet-mask 255.255.255.0;
    option domain-name-servers 172.16.150.2;
    range 172.16.150.100 172.16.150.150;
    default-lease-time 3600;
    max-lease-time 14400;
}
EOM

systemctl enable isc-dhcp-server
systemctl start isc-dhcp-server
systemctl status isc-dhcp-server
```

### Wazuh Agent Setup:

MGMT

```
scp wazuh-agent-4.3.10.deb paul@172.16.150.5:
```

On NGINX

```bash
sudo WAZUH_MAsudo WAZUH_MANAGER='172.16.200.10' WAZUH_AGENT_GROUP='linux' dpkg -i ./wazuh-agent-4.3.10.deb
sudo systemctl daemon-reload
sudo systemctl enable wazuh-agent
sudo systemctl start wazuh-agent
```
